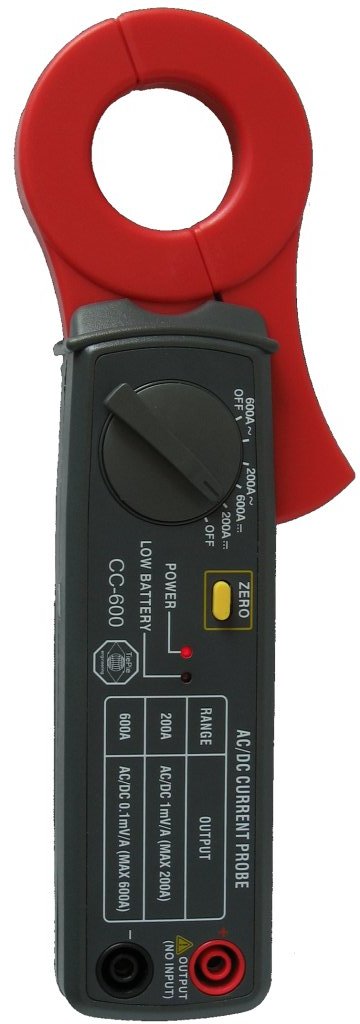

CC-600 - Current Clamp 600A
|
|
|
|
Technical specifications |
| Capture conductor diameter: |
30 mm maximum |
| Ranges: |
200 A
600 A |
| Bandwith: |
400 Hz maximum |
| Power Supply: |
9V NEDA 1604
6F22 006P battery |
| Battery life: |
80 hrs typical (alkaline battery) |
| Weight: |
270 g |
| Connection: |
cable with 2 x 4 mm banana socket |
| Accuracy DC ... 200 A: |
±3% |
| Accuracy AC ... 200 A: |
±3.5% (50 Hz..400 Hz) |
| Accuracy DC ... 600 A: |
±3.5% |
| Accuracy AC ...600 A: |
±4% (50 Hz..400 Hz) |
|
|
|
