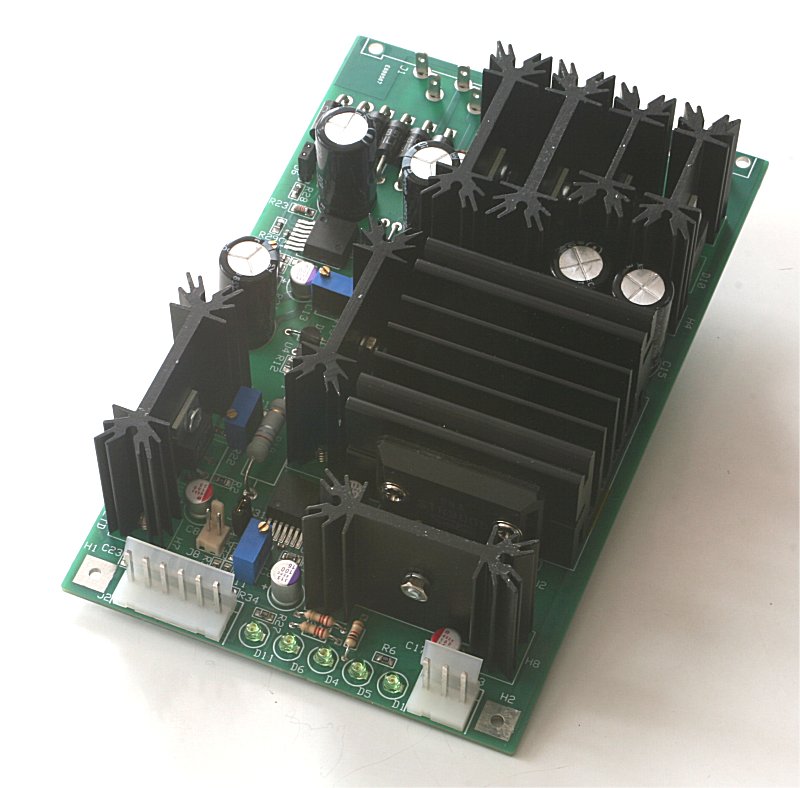

The BH9000A offers six independent DC regulators (+5V, -5V, +12V, +9V, -12V and ±3.3V) with a total power of 118 Watt. Each regulator, except +12V and +9V, has independent Schottky diode rectifier with filter. Two regulators (+9V and +12V) share common Schottky diode rectifier with filter. The DC Power Supply BH9000A has standard European format 160 x 100 mm with input DIN 41612 / H15 connector.

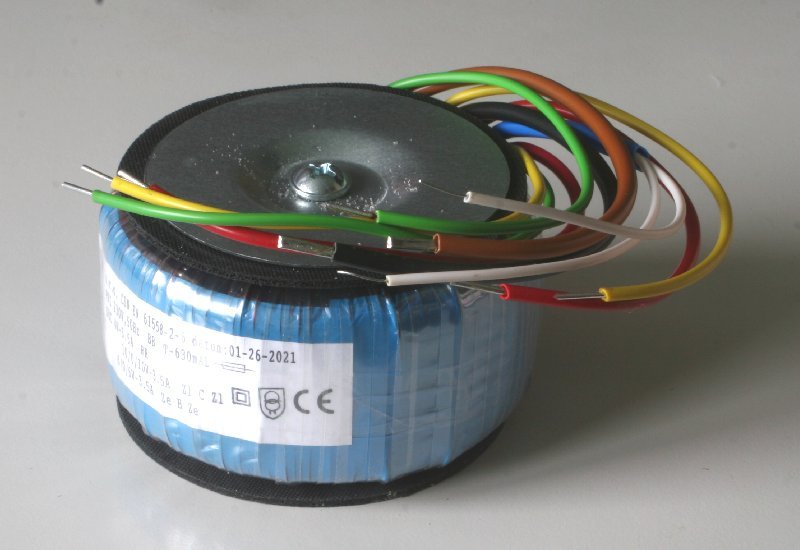

The BH9000A can be powered either from non-regulated AC source, i.e. a transformer or from non-regulated DC source, i.e. battery. The input power is applied on J1 connector (DIN 41612 / H15). If the BH9000A is powered from AC source, the non-regulated and filtered DC power delivered from rectifier's filter to regulator is also available as output on J1 connector.

Output No.	default	adj. range
1	+5V @ 4A	4.5V ... 5.5V
2	-5V @ 1.5A	-4.6V ... -6V
3	+12V @ 3A	+9V ... +14V
4	-12V @ 1.5A	-10V ... -13.5V
5	+9V @ 3A	+7.5V ... +9.6V
6	±3.3V @ 3A	±2.8V ... ±3.8V

Board size: 100 x 160 mm
